FORD EVEREST – STORAGE DRAWER PACKAGE $1725 (5 seat) / $1975 (7 seat)

This is the Ford Everest package…specially designed to fit and work in this truck. I can also get water tanks and fridge slides so let me know if you need any of these. Thanks, Beechy….

ENQUIRE NOW ORDER ONLINE

Price Includes:

- 2 drawer with table unit
- Fixed sidewings
- Paka’s below
- All installation hardware with easy access cut outs

OPTIONAL:

Aluminium edge strip, insert drawer, flush tie down points, infills, plus much more….
Installation at Drifta HQ (Gloucester) or delivery to you

THE UNIT TO SUIT THE 5 SEATS AND 7 SEATS MODEL (3rd row of seats removed) ARE THE SAME DRAWER UNIT – BUT THE 7 SEATS MODEL (3rd row of seats removed) REQUIRES THE FLOOR REPLACEMENT PANEL – PRICE DIFFERENCE NOTED BELOW.

NOTE – YOU CAN BUY THE FLOOR REPLACEMENT PANEL SEPARATELY – EMAIL BEECHY FOR DETAILS… mark@drifta.com.au

Drawer Accessories

We have a great selection of accessories to go with our 4WD Drawers – fridge slides / sliding top, tie down points, water tanks, cargo barriers, aluminium edging, insert drawers, swap drawers, lock box, bed extension and more…..

click here for more details

5 SEAT model – $1725

This is the system that I’ve developed for the Ford Everest. Drifta’s stylish design and high quality finish, plus custom made to the exact size of your truck. This unit measures 1000W (1090 top) x 970D x 275H (height can be altered)

You can see how there is no wasted space by using our Teflon slide system – so we save space, weight and of course cost by doing away with normal roller runners – and Drifta drawers slide very free and easy

The table is unique to Drifta and fits above one of the drawers so is always ready to use and easy to get to. It can go on either side (normally opposite side to the fridge if you’re carrying one) and can be used half slid out like this…..

…or can be set up free standing with the full set of steel legs attached to the bottom. Solid 12mm laminated top and fully adjustable…its one of our most popular features. If you don’t want the table, let us know and we’ll reduce the price of your order.

The drawers go FULL WIDTH between the wheel arch’s so maximizing full use out of all the space that you have available….

…. there’s not really any need for lift off side wings – I just extend the top over both sides to neaten it up and fill the gaps so things don’t roll down there.

Installation is simple – we provide the hardware…simply bolt some tie down points into existing holes (where the seats originally secured) and then the unit hooks on with turnbuckles like shown here – easy!

Here’s one with the built in (flush) DSS fridge slide – I make this slide to suit any fridge and its very neat/compact.

7 SEAT model (3rd row of seats removed) – $1975

Ford Everest Storage Drawer Package26 — The 7 seater system is the same unit, but we mount the unit on top of a floor replacement panel (adds to price). The Floor panel bolts to the vehicle into the existing holes (no drilling).

Ford Everest Storage Drawer Package27 — With the seats removed the vehicle floor is very uneven, so the floor panel makes it flat/level so the drawers sit nicely…then the drawers simply bolt directly to the panel (captive nuts).

Ford Everest Storage Drawer Package28 — The floor panel in the Everest is very neat, so you can leave it in there even if the drawers are removed – looks like this.

Ford Everest Storage Drawer Package29 — We do sell the floor panels separately too….

MORE OPTIONS / INFO…..

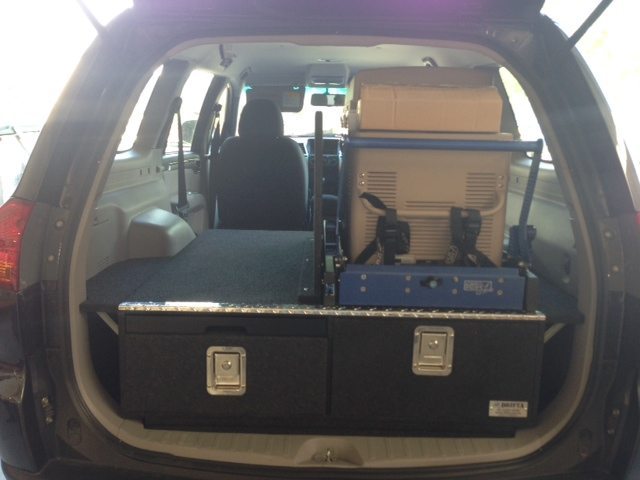

You can also add a drop down style fridge slide to the top…here’s a DS40 slide – see how its opposite side to the table…this is so you can drop the fridge down, and still slide the table out at the same time (works with the DS40 only, DS50 & DS60 are too wide to do this…)

And the fridge divider works heaps well…means you can load the back up and keep the fridge free and un obstructed

We put a cut out in the base and cut the central support back so you can access the spare wheel.

So when the spare is needed the drawer is removed and you can use a ratchet and socket to access the wind down bolt to drop the spare.

The fronts of the drawers overhand the central support to hide the fact that its cut out – just makes it look neat.

Here’s a photo with the drawer in the closed position.

#2 STYLE SYSTEM – KEEP THE FRIDGE DOWN LOW

(NOTE – this system only available by emailing Beechy mark@drifta.com.au )

Here’s one of our wagon #2 style systems in the Everest – so you have one drawer + table…then the fridge down low next to the drawer.

This system works well in the Everest as there is limited height on top for a fridge – so you can still use a taller fridge with this style of system.

You can include the optional drop in panel to make a flat deck when the fridge is taken out – and the slide can still operate as a pull out bench / shelf for storage.

And another option is the REMAVABLE fridge box / surround – allows you to stack gear all around / on top of the fridge so you can really make full use of the space available!

VERTICAL DRAWER OPTION

(NOTE – this system only available by emailing Beechy mark@drifta.com.au)

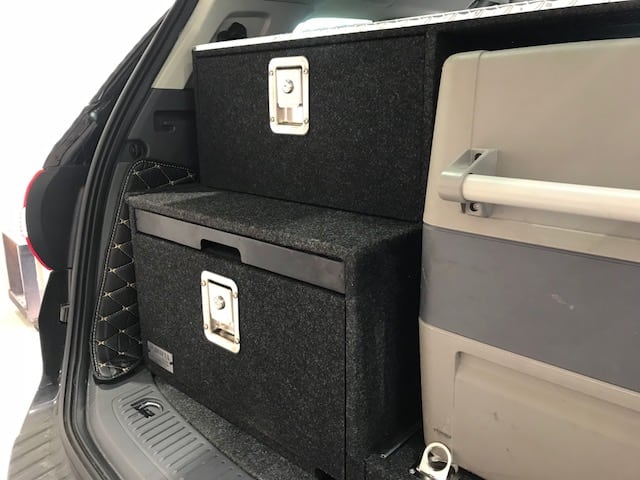

Ford Everest Storage Drawer Package — 2 drawers stacked + fridge in a permanent box.

OTHER DESIGNS TO SUIT THIS VEHICLE….

The 3 In 1 Modular Unit Combines W1 W2 W6 01

THE “3 IN 1” – MODULAR UNIT – COMBINES W#1, W#2 & W#6! (FROM) $2390

This revolutionary drawer system covers all requirements – combining 3 of Drifta’s most popular drawers systems in the one build. Modular sections so it can be easily / quickly converted from one style to the other. If you use your 4wd for lots of different uses, or just can’t decide which system suits you best – then this is the system you need!

More Info

WAGON #2 – DRAWER / TABLE / FRIDGE PACKAGE

Here’s an alternative system which keeps the fridge down low and gives you a nice LARGE storage drawer plus the awesome Drifta table.

More Info

WAGON #3 (DCBC) – KITCHEN (freestanding) + DRAWER + TABLE (from) $1795

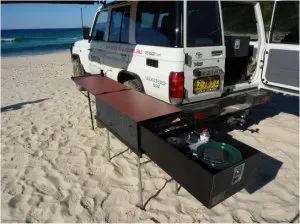

The DCBC (Drifta Car Back Combo) unit has the convenience of a nice large storage drawer + the Drifta slide out table….then we build in the SD-DCB style removeable kitchen on the other side. The kitchen has a nice long fold out bench with laminated top, plus heaps of internal storage for your cooking gear. Also worth checking out the swap drawer option which fits in place of the kitchen – converts this system into a WAGON #1 (2 drawers + table unit)!

More Info

Wagon 4 Kitchen On Runners No Legs Lifting Drawer Table01

WAGON #4 – KITCHEN (on runners, no legs/lifting) + DRAWER + TABLE (from) $2265

This system is similar to the DCBC above so you get a large general storage drawer + slide out table….but the kitchen is modified with built in stove space/drawers/storage….plus the kitchen SLIDES OUT QUICK AND EASY thanks to the heavy duty STAINLESS STEEL RUNNERS. Fully self supporting…the kitchen slides out with no lifting required – then auto locks out and is ready to use!

More Info

WAGON #6 – VERTICAL DRAWERS + FRIDGE BOX

If you need to keep the fridge down low but still want the convenience of 2 nice big storage drawers then this system might be the one for you! Built to suit ANY fridge and ANY vehicle (as possible) – each unit is custom made for every customer so what you get will be a perfect fit for your set-up.

More Info

12V FITOUTS

Whatever 12V work you need doing there’s no job too big or small for our autolec team at Drifta! We specialize in wiring up 4wd’s and vans to suit the camping and 4wd industry – so we can advise you on what you need and what will work best for you.

More Info

TO ORDER

Mark Beech (Beechy) manages all vehicle fit outs at Drifta. He has many years experience and knows most vehicles very well so can offer you lots of advice and tips on what system could work best for you. Most of our standard vehicle systems can be bought online through our “ORDER NOW” function, and Beechy checks through all orders to make sure they will fit/work as needed. Anything more customized, or any questions – please contact Beechy and the drawer sales team – there is nothing they can’t help you out with! Thanks for looking……

EMAIL: mark@drifta.com.au
PHONE: (02) 6558 2328 (BH)
7 Lowe St Gloucester NSW 2422
