L/R DISCOVERY 3 & 4 - STORAGE DRAWER PACKAGE $1775

Price Includes:

2 drawer with table unit
Fixed sidewings
All installation hardware
Access to spare wheel bolt and under floor storage (when seats removed)

OPTIONAL:

Aluminium edge strip, insert drawer, flush tie down points, infills, plus much more….
Installation at Drifta HQ (Gloucester) or delivery to you

This is the Disco 3 & 4 package…specially designed to fit and work in this truck. I can also get cargo barriers and fridge slides so let me know if you need any of these. Thanks, Beechy….

Drawer Accessories

We have a great selection of accessories to go with our 4WD Drawers – fridge slides / sliding top, tie down points, water tanks, cargo barriers, aluminium edging, insert drawers, swap drawers, lock box, bed extension and more…..

click here for more details

This is the system that I’ve developed for the Discovery 3 & 4. Drifta’s stylish design and high quality finish, plus custom made to the exact size of your truck. This unit measures 1000W (1090W top) x 1000D x 275H (height can be altered)

You can see how there is no wasted space by using our Teflon slide system – so we save space, weight and of course cost by doing away with normal roller runners – and Drifta drawers slide very free and easy

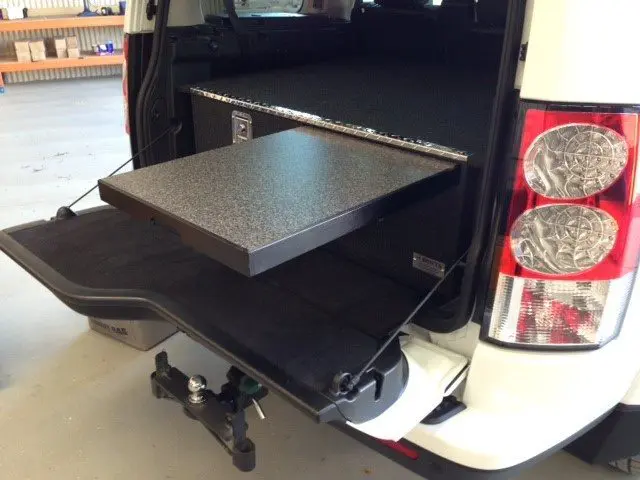

The table is unique to Drifta and fits above one of the drawers so is always ready to use and easy to get to. It can go on either side (normally opposite side to the fridge if you’re carrying one) and can be used half slid out like this…..

…or can be set up free standing with the full set of steel legs attached to the bottom. Solid 12mm laminated top and fully adjustable…its one of our most popular features. If you don’t want the table, let us know and we’ll reduce the price of your order.

The Disco 3 & 4 will normally have fixed side wings like this. Here you can also see how the unit is secured into place with turnbuckles (supplied) onto the existing tie down points…2 down each side, so its very easy install/remove – and NO DRILLING required!

There’s not much room down the side of the unit to get to the turnbuckles so I put cut outs in the side and rear panels of the carcass so you can get your hand on them. Here you can also see the cut outs in the base……

….there are 2 of these (one below each drawer) so you can access the space where the 3rd row of seats are stored – IF you decide to remove them.

One final cut out is to access the SPARE WHEEL BOLT. I put an access point directly above the spare wheel bolt. And here’s a tip….

…If you do decide to leave the 3rd row seats in then I’ve seen a few people have knocked up and extension to reach through the narrow gap and fit on the release bolt.

Its basically a 22mm socket with an extension bar…looks a bit like this. This one’s a welded bar, but you can just use a normal extension bar I too reckon.

Here’s one with a DS40 drop slide and fridge divider fitted. You can also ft the DS50 and DS60 in the Discovery’s. I have all these slides in stock!

…One bonus of using the DS40 is that you can drop the fridge and still access the table and one drawer like this. You can’t do this with the 50 and 60 as they’re too wide.

This is Daves Disco 4…he has 2 drop slides for his Engel 45L fridges. He also has 2 tables and a 40L water tank built into his drawer unit by the seats – fully rigged!!

And here’s Graham and Leightons (father and son) trucks with the exact same set-ups in the back with two DS40’s each!! We also kitted out their camper trailers with some gear…

Any of the Drifta set-ups we do I can make for the Discovery like this 2 drawer + fridge box unit, so if you want something different to the package above then email me…

Thanks for looking, any questions just give me a shout! Cheers, Beechy…..

This is the cargo barrier we do for the Discovery. It’s a full frame (so easy to install) with no mesh in the lower half (so you get bigger drawers and better access).

This barrier attaches to all existing holes – so NO DRILLING required! A very solid and secure barrier providing excellent safety – I sell heaps of these.

OTHER DESIGNS TO SUIT THIS VEHICLE….

The 3 In 1 Modular Unit Combines W1 W2 W6 01

THE “3 IN 1” – MODULAR UNIT – COMBINES W#1, W#2 & W#6! (FROM) $2390

This revolutionary drawer system covers all requirements – combining 3 of Drifta’s most popular drawers systems in the one build. Modular sections so it can be easily / quickly converted from one style to the other. If you use your 4wd for lots of different uses, or just can’t decide which system suits you best – then this is the system you need!

More Info

WAGON #2 – DRAWER / TABLE / FRIDGE PACKAGE

Here’s an alternative system which keeps the fridge down low and gives you a nice LARGE storage drawer plus the awesome Drifta table.

More Info

WAGON #3 (DCBC) – KITCHEN (freestanding) + DRAWER + TABLE (from) $1795

The DCBC (Drifta Car Back Combo) unit has the convenience of a nice large storage drawer + the Drifta slide out table….then we build in the SD-DCB style removeable kitchen on the other side. The kitchen has a nice long fold out bench with laminated top, plus heaps of internal storage for your cooking gear. Also worth checking out the swap drawer option which fits in place of the kitchen – converts this system into a WAGON #1 (2 drawers + table unit)!

More Info

Wagon 4 Kitchen On Runners No Legs Lifting Drawer Table01

WAGON #4 – KITCHEN (on runners, no legs/lifting) + DRAWER + TABLE (from) $2265

This system is similar to the DCBC above so you get a large general storage drawer + slide out table….but the kitchen is modified with built in stove space/drawers/storage….plus the kitchen SLIDES OUT QUICK AND EASY thanks to the heavy duty STAINLESS STEEL RUNNERS. Fully self supporting…the kitchen slides out with no lifting required – then auto locks out and is ready to use!

More Info

WAGON #6 – VERTICAL DRAWERS + FRIDGE BOX

If you need to keep the fridge down low but still want the convenience of 2 nice big storage drawers then this system might be the one for you! Built to suit ANY fridge and ANY vehicle (as possible) – each unit is custom made for every customer so what you get will be a perfect fit for your set-up.

More Info

12V FITOUTS

Whatever 12V work you need doing there’s no job too big or small for our autolec team at Drifta! We specialize in wiring up 4wd’s and vans to suit the camping and 4wd industry – so we can advise you on what you need and what will work best for you.

More Info

TO ORDER

Mark Beech (Beechy) manages all vehicle fit outs at Drifta. He has many years experience and knows most vehicles very well so can offer you lots of advice and tips on what system could work best for you. Most of our standard vehicle systems can be bought online through our “ORDER NOW” function, and Beechy checks through all orders to make sure they will fit/work as needed. Anything more customized, or any questions – please contact Beechy and the drawer sales team – there is nothing they can’t help you out with! Thanks for looking……

EMAIL: mark@drifta.com.au
PHONE: (02) 6558 2328 (BH)
7 Lowe St Gloucester NSW 2422
